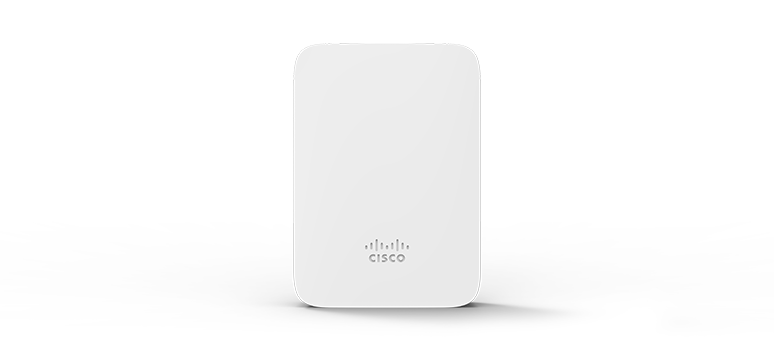

MR30H
802.11ac Wave 2 wireless with integrated gigabit switch
Highlights
-
Ideal use cases
-
- In-room hotel or dormitory deployments
- IP-enabled devices in the same room
-
Hardware features
-
- Integrated 4 port gigabit switch
- 3 radios: 2.4 GHz, 5 GHz, and dual-band WIDS/WIPS
- Integrated BluetoothⓇ Low Energy radio
- 2×2 MU-MIMO 802.11ac Wave 2
- Up to 1.3 Gbps aggregate dual-band frame rate
- 802.3af PoE compatible
-
Cloud management
-
- Network-wide visibility and control
- Self-provisioning for rapid deployment
- Automatic reporting
- Seamless firmware updates
-
Enterprise security
-
- 802.1X integration
- Air Marshal: real-time WIPS with forensics
- Stateful Layer 3-7 firewall
- Identity-based group policies
- Built-in antivirus scan (NAC)
- Built-in Umbrella DNS Security*
- Adaptive Policy automated segmentation**
-
Guest access
-
- 1-click secure guest access
- Guest isolation firewall
- Customizable splash pages
-
RF optimization
-
- Dual-concurrent, 2-stream MIMO radios
- Radios optimized for rate-vs-range performance
- Third radio dedicated to security and RF management
- Built-in real-time RF spectrum view
- Cloud-based automatic RF optimization
-
Layer 7 traffic shaping
-
- Classify hundreds of applications
- Create per-application bandwidth limits
- Prioritize productivity apps
- Restrict recreational traffic
-
Location Analytics
-
- Measure visitor capture rate, visit length, and repeat visit rate
- Measure visitor trends over time and compare performance across locations
- Enable location services through integrated iBeacon functionality
*Requires Advanced license
**Requires Advanced license and compatible switch
| Usage | Radios | Interface | Power | Performance features | |
MR20 |
Basic wireless, medium-density deployments | 1 × 802.11b/g/n
1 × 802.11a/n/ac 1.3 Gbit/sec max rate 2×2:2 MU-MIMO with beamforming |
1 × Gigabit Ethernet port | 802.3af PoE
DC power adapter |
2×2:2 MU-MIMO
Priority Voice, Power Save (802.11e/WMM) Hardware-accelerated encryption Band steering |
|---|---|---|---|---|---|
MR30H |
In-room hotel or dormitory deployments that must service IP-enabled devices | 1 × 802.11b/g/n
1 × 802.11a/n/ac 1 × WIDS/WIPS 1 × Bluetooth 1.3 Gbit/sec max rate 2×2:2 MU-MIMO with beamforming |
1 × Gigabit Ethernet input
1 × Gigabit Ethernet LAN port with 802.3af PoE 3 × Gigabit Ethernet LAN ports |
802.3af PoE | 2×2:2 MU-MIMO
Priority Voice, Power Save (802.11e/WMM) Hardware-accelerated encryption Band steering |
MR33 |
Basic 802.11ac Wave 2 for futureproof deployments | 1 × 802.11b/g/n
1 × 802.11a/n/ac 1 × WIDS/WIPS 1 × Bluetooth 1.3 Gbit/sec max rate 2×2:2 MU-MIMO with beamforming |
1 × Gigabit Ethernet port | 802.3af PoE
DC power adapter |
2×2:2 MU-MIMO
Priority Voice, Power Save (802.11e/WMM) Hardware-accelerated encryption Band steering |
MR36 |
High-performance Wi-Fi 6 (802.11ax) to futureproof deployments, with UL/DL MU-MIMO and OFMDA | 1 × 2.4 Ghz 802.11b/g/n/ax
1 × 5 GHz 802.11a/n/ac/ax 1 × WIDS/WIPS 1 × Bluetooth 1.7 Gbit/sec max rate 2×2:2 MU-MIMO with beamforming |
1 × Gigabit Ethernet port | 802.3af PoE
DC power adapter |
2×2:2 MU-MIMO and OFDMA
160 MHz Channels** Priority Voice, Power Save (802.11e/WMM) Hardware-accelerated encryption Band steering |
MR42 |
General purpose 802.11ac Wave 2 for campus and enterprise | 1 × 802.11b/g/n
1 × 802.11a/n/ac 1 × WIDS/WIPS 1 × Bluetooth 1.9 Gbit/sec max rate 3×3:3 MU-MIMO with beamforming |
1 × Gigabit Ethernet port | 802.3at/802.3af PoE
DC power adapter |
3×3:3 MU-MIMO
Priority Voice, Power Save (802.11e/WMM) Hardware-accelerated encryption Band steering |
MR42E |
General purpose wireless, challenging RF, or focused coverage scenarios | 1 × 802.11b/g/n
1 × 802.11a/n/ac 1 × WIDS/WIPS 1 × Bluetooth 1.9 Gbit/sec max rate 3×3:3 MU-MIMO with beamforming |
1 × Gigabit Ethernet port | 802.3at PoE
DC power adapter |
3×3:3 MU-MIMO
Priority Voice, Power Save (802.11e/WMM) Hardware-accelerated encryption Band steering Removable antennas |
MR46 |
High-performance, Wi-Fi 6 (802.11ax) with Multigigabit Ethernet for high density campus and enterprise, with UL/DL MU-MIMO and OFMDA | 1 × 2.4 Ghz 802.11b/g/n/ax
1 × 5 GHz 802.11a/n/ac/ax 1 × WIDS/WIPS 1 × Bluetooth 3.5 Gbit/sec max rate 4×4:4 MU-MIMO with beamforming |
1 × 2.5 Gbps Multigigabit Ethernet port | 802.3at PoE
DC power adapter |
4x4:4 UL/DL MU-MIMO and OFDMA
160 MHz Channels** Priority Voice, Power Save (802.11e/WMM) Hardware-accelerated encryption Band steering |
MR46E |
High-performance, Wi-Fi 6 (802.11ax) with Multigigabit Ethernet for high density, challenging RF, or focused coverage scenarios, with UL/DL MU-MIMO and OFMDA, and external antennas | 1 × 2.4 Ghz 802.11b/g/n/ax
1 × 5 GHz 802.11a/n/ac/ax 1 × WIDS/WIPS 1 × Bluetooth 3.5 Gbit/sec max rate 4×4:4 MU-MIMO and OFDMA with beam forming |
1 × 2.5 Gbps Multigigabit Ethernet port | 802.3at PoE
DC power adapter |
4x4:4 UL/DL MU-MIMO and OFDMA
160 MHz Channels** Priority Voice, Power Save (802.11e/WMM) Hardware-accelerated encryption Band steering Removable antennas |
MR52 |
Highest performance 802.11ac Wave 2 for high density campus, enterprise, and MU-MIMO | 1 × 802.11b/g/n
1 × 802.11a/n/ac 1 × WIDS/WIPS 1 × Bluetooth 2.5 Gbit/sec max rate 4×4:4 MU-MIMO with beamforming |
2 × Gigabit Ethernet port | 802.3at PoE
DC power adapter |
4×4:4 MU-MIMO
Priority Voice, Power Save (802.11e/WMM) Hardware-accelerated encryption Band steering |
MR53 |
Highest performance 802.11ac Wave 2 with Multigigabit for high density campus, enterprise, and MU-MIMO | 1 × 802.11b/g/n
1 × 802.11a/n/ac 1 × WIDS/WIPS 1 × Bluetooth 2.5 Gbit/sec max rate 4×4:4 MU-MIMO with beamforming |
1 × 2.5Gbps Multigigabit Ethernet port
1 × Gigabit Ethernet port |
802.3at PoE
DC power adapter |
4×4:4 MU-MIMO
Priority Voice, Power Save (802.11e/WMM) Hardware-accelerated encryption Band steering |
MR53E |
Performance-critical wireless for high-density, challenging RF, or focused coverage scenarios | 1 × 802.11b/g/n
1 × 802.11a/n/ac 1 × WIDS/WIPS 1 × Bluetooth 2.5 Gbit/sec max rate 4×4:4 MU-MIMO with beamforming |
1 × 2.5 Gbps Multigigabit Ethernet port
1 × Gigabit Ethernet port |
802.3at PoE
DC power adapter |
4×4:4 MU-MIMO
Priority Voice, Power Save (802.11e/WMM) Hardware-accelerated encryption Band steering Removable antennas |
|
MR56 |
Ultra High-performance, Wi-Fi 6 (802.11ax) with Multigigabit Ethernet for high density campus and enterprise, with UL/DL MU-MIMO and OFMDA | 1 × 2.4 GHz 802.11b/g/n/ax
1 × 5 Ghz 802.11a/n/ac/ax 1 × WIDS/WIPS 1 × Bluetooth 5.9 Gbit/sec max rate 8×8:8 MU-MIMO with beamforming |
1 × 5 Gbps Multigigabit Ethernet port | 802.3at PoE
DC power adapter |
8x8:8 UL/DL MU-MIMO and OFDMA
160 MHz Channels** Priority Voice, Power Save (802.11e/WMM) Hardware-accelerated encryption Band steering |
**Software features can be enabled via firmware updates.
- Radios
- 2.4 GHz 802.11b/g/n client access radio
- 5 GHz 802.11a/n/ac client access radio
- 2.4 GHz & 5 GHz WIDS/WIPS, spectrum analysis, and location analytics radio
- 2.4 GHz Bluetooth Low Energy radio with beacon and Bluetooth Low Energy scanning support
- Concurrent operations of all four radios
- Operating Bands
-
- 2.412-2.484 GHz
- 5.150-5.250 GHz (UNII-1)
- 5.250-5.350 GHZ (UNII-2)
- 5.470-5.600, 5.660-5.725 GHz (UNII-2e)
- 5.725 -5.825 GHz (UNII-3)
-
- 802.11ac & 802.11n Capabilities
- 2x2 multiple input, multiple output (MIMO) with two spatial streams
- SU-MIMO and MU-MIMO support
- Maximal ratio combining (MRC) & Beamforming
- 20 and 40 MHz channels (802.11n), 20, 40, and 80 MHz channels (802.11ac)
- Up to 256 QAM on both 2.4 GHz and 5 GHz bands
- Packet aggregation
- Power
- Power over Ethernet: 37 - 57 (802.3at compatible)
- Power consumption: 25W max (802.3at)
- 802.3af operating mode disables PoE out
- Power over Ethernet injector sold separately
- Mounting
- Mounting hardware included for US, UK, EU, AU & Asia single gang wall jacks
- Physical Security
- Two security screw options (included)
- Concealed mount plate
- Environment
- Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
- Humidity: 5 to 95% non-condensing
- Physical Dimensions
- 6.1” x 4.3” x 0.9” (155 mm x 110 mm x 23 mm), not including mount foot or mount plate
- Weight: 14.4 oz (409 g)
- Antenna
- Integrated omni-directional antennas (3.7 dBi gain at 2.4 GHz, 4.8 dBi gain at 5 GHz)
-
- Interfaces
- 1 × 10/100/1000 BASE-T Ethernet (RJ45) input
- 1 × Gigabit Ethernet (RJ45) with 802.3af Power over Ethernet output
- 3 × Gigabit Ethernet (RJ45) out
- Security
- Integrated layer 7 firewall with mobile device policy management
- Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal
- Flexible guest access with device isolation
- VLAN tagging (802.1Q) and tunneling with IPSec VPN
- PCI compliance reporting
- WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X
- EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM
- TKIP and AES encryption
- Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration
- Quality of Service
- Advanced Power Save (U-APSD)
- WMM Access Categories with DSCP and 802.1p support
- Layer 7 application traffic identification and shaping
- Mobility
- PMK, OKC, and 802.11r for fast Layer 2 roaming
- Distributed or centralized Layer 3 roaming
- LED Indicators
- 4x 2 Ethernet status for Ethernet ports
- 1 power/booting/firmware upgrade status
- Warranty
- Lifetime hardware warranty with advanced replacement included
- Interfaces
- Ordering Information
- MR30H-HW MR30H-HW: Meraki MR30H Cloud Managed 802.11ac AP
- MA-INJ-4-XX Cisco Meraki 802.3at Power over Ethernet Injector (XX = US, EU, UK or AU)
- Note: Meraki Enterprise license required
